Heavy-Duty Custom Ball Joint Assemblies: Engineering & Sourcing Analysis
When you manage a commercial fleet, operate heavy machinery, or design high-stress suspension systems, a single part failure can lead to costly downtime. Furthermore, it causes rising repair costs and risks road safety. For performance aftermarket suppliers and tuning fans, the stakes are just as high. This is because pushing a car to its limits on the track, upgrading off-road suspension setups, or changing vehicle ride height introduces extreme stress. Consequently, standard factory parts simply cannot handle these setups.
Therefore, the ball joint sits at the center of these operational challenges. As the main pivot point of the suspension, it takes the constant beating from shifting vehicle weights, rough road shocks, and non-stop steering movement. Because of this, procurement officers and aftermarket brands must source parts that can survive these harsh forces. In addition, learning the exact engineering behind heavy-duty custom ball joint assemblies is the best first step to stop early part wear and boost vehicle performance.

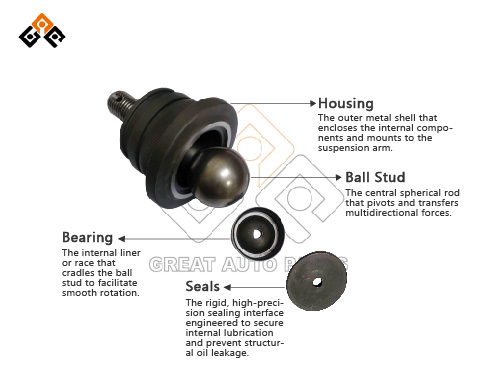

Anatomy of a Ball Joint: Component Breakdown and Angular Customization
A standard industrial ball joint is a high-precision assembly comprising five core engineering components:
Ball Stud
The main round rod that pivots and moves forces in many directions.
Housing
The outer metal shell that holds the inner parts and connects to the suspension arm.
Bearing
The inner liner or race that holds the ball stud to allow smooth turning.
Seals
The rigid, high-precision sealing part that holds inner oil in place, stops leaks, and blocks outside mud, water, and road dirt.
Lubricant
The special grease or oil mix that lowers inner friction.
Tailored Angular Movement & Custom Design Integration
Beyond choices in materials, the actual range of motion plays a vital role in chassis setup. Depending on the exact swing angle and clearance that a client needs for their suspension setup, our engineers can change the shapes of both the Ball Stud and the Housing (Link Ball) at the same time. As a result, we can deliver high-performance heavy-duty custom ball joint assemblies.
For instance, our factory makes studs in many shapes, including full-ball studs, semi-ball studs, or T-type studs to match different load setups. By changing the neck size of the stud and altering the shoulder profile or opening space of the housing, we can build the assembly to fit high-travel off-road lift kits or low performance cars without binding. Ultimately, this smart engineering ensures a full range of motion while keeping the part strong under tough conditions.
Advanced Bearing Technologies for Custom Ball Joint Assemblies
The inner bearing structure of a ball joint controls how it handles load, stress, and movement. Therefore, different inner designs help parts work well in specific driving conditions.
Metal-to-Metal Bearings: Engineered for High Loads & Shock Resistance

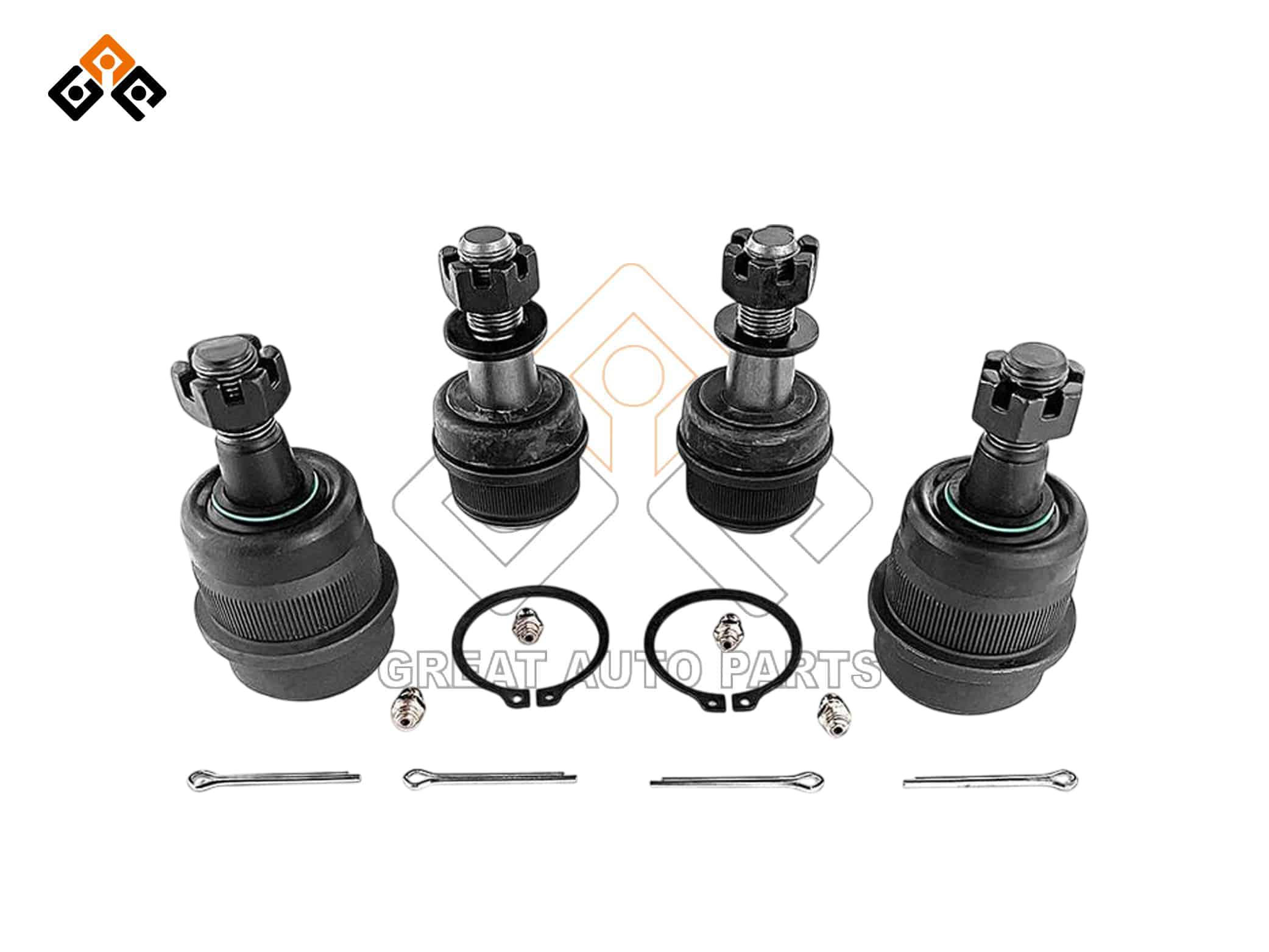

For trucks carrying heavy loads, off-road cars driving on rough paths, or tuned sports cars needing sharp handling, a stiff structure means everything. Thus, our metal-to-metal heavy-duty custom ball joint assemblies use strong, heat-treated alloy steel that our team machines on CNC tools to tight size limits.
To get the longest life under big pressure, our team integrates molybdenum disulfide (MoS2) grease into the inner structure when we assemble the part. This advanced dry coating lowers metal-on-metal friction and stops wear. Consequently, this design spreads extreme shock loads over a very large surface area. It removes inner movement under load, and it offers great fatigue resistance under harsh off-road, heavy truck, or track conditions.
Polymer Bearings: Reliable, Lightweight Alternative for Urban Comfort
On the other hand, modern passenger cars and Electric Vehicles (EVs) need low friction and smooth driving instead of heavy shock absorption. Therefore, our polymer bearing technology uses a high-performance plastic liner made for normal daily driving stress. It creates a smooth steering feel, steady torque, and quiet driving. As a result, it works as the best choice for city fleets that value comfort and energy savings.
Tailored Lubrication Layouts: Greaseable vs. Sealed Configurations
Good grease management keeps a suspension living a long time. Furthermore, picking the right grease setup to match your bearing type changes how mechanics fix a vehicle in the field.
Greaseable Design: Serviceable Longevity for Metal-to-Metal Joints

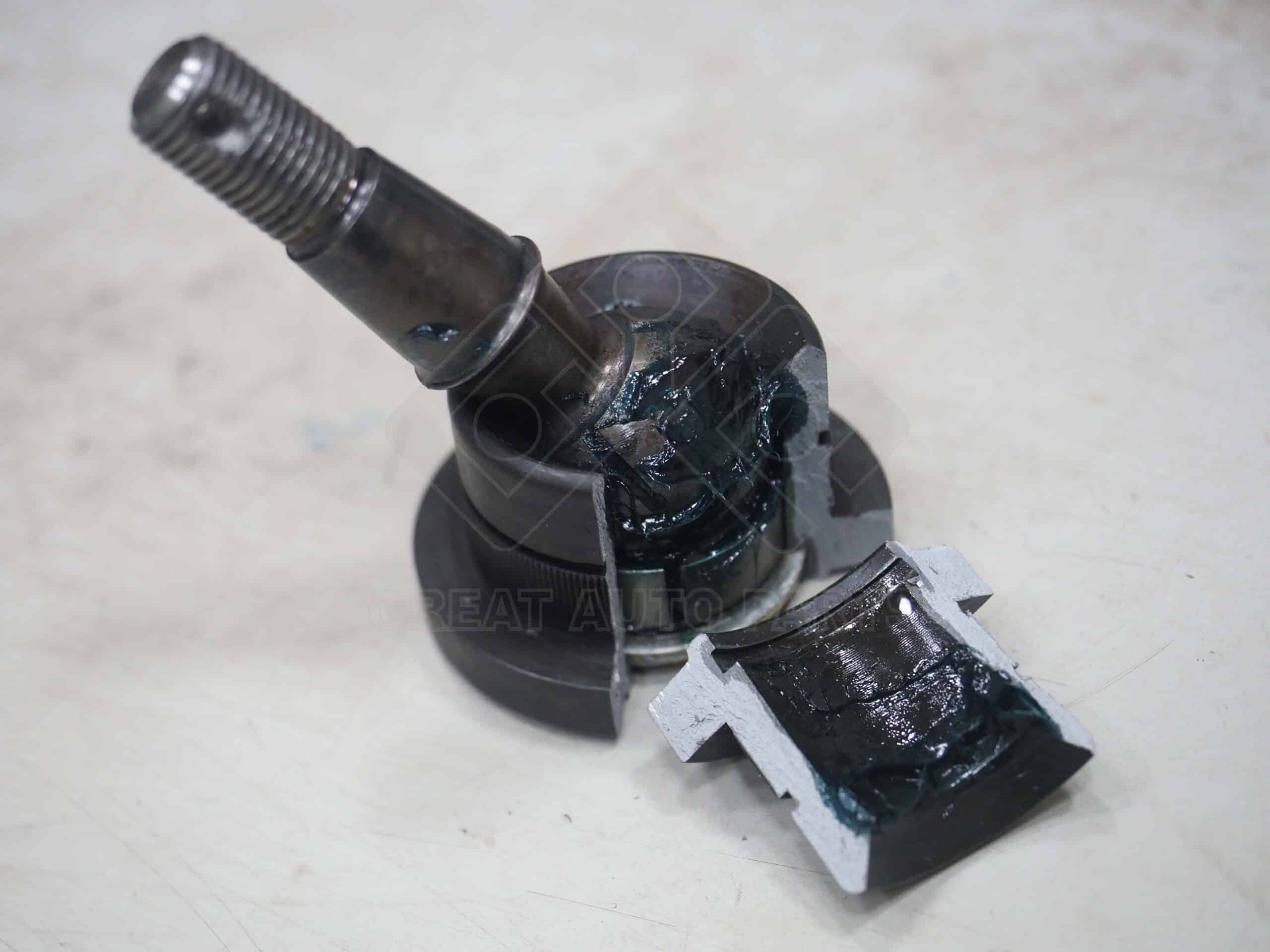

For tough automotive uses where trucks abuse suspension parts daily or cars face intense track days, our greaseable layout offers a highly fixable fix for heavy-duty custom ball joint assemblies. This setup includes a built-in zerk fitting along with advanced ball studs that use smart grease grooves.
These precision grooves ensure excellent oil and grease spread across the inner metal parts. Therefore, this clear grease path allows off-roaders, heavy fleets, and tuning mechanics to extend the life of metal-to-metal joints through simple, planned upkeep.
Sealed Designs: Maintenance-Free Polymer Integration
However, for jobs where regular service is hard or impossible, our sealed layout offers a hassle-free, install-and-forget choice. We use this setup mainly in our polymer designs. Here, we pack the parts at the factory with top-grade synthetic grease and use our special rigid seals. This setup locks the grease inside and forms a strong mechanical wall against dirt, water, and mud. Consequently, it ensures long life with no human work needed.
Finding Your Blueprint: Optimal Ball Joint Configurations
Since different inner ball joint designs fit different jobs, we match our advanced core materials with their ideal grease setups in the chart below. This chart helps you source the right heavy-duty custom ball joint assemblies:
| Bearing Technology | Lubrication Layout | Key Characteristics & Mechanics | Best Vehicle Applications |
| Metal-to-Metal | Greaseable Design | Strong steel structure with molybdenum disulfide grease, zerk fittings, and smart grease grooves. | Heavy-Duty Trucks, Rugged Off-Roaders, Performance Tuning, Performance Aftermarket |
| Polymer | Sealed Designs | Light plastic liner paired with factory synthetic grease and special rigid inner seals for a no-service choice. | Electric Vehicles (EVs), Modern Passenger Cars, Urban Fleets |
The Great Auto Parts Authority: Specialized OEM/ODM Customization
As trusted chassis experts, Great Auto Parts (Ching Yee Enterprise Co., Ltd.) runs Taiwan’s first dedicated, in-house chassis testing lab to ensure every part beats industry rules. Furthermore, our build process goes far beyond basic CNC cutting. To back our knowledge with true trust, we run tough in-house Ball Stud Drop Impact Tests. This test ensures that under sudden, extreme loads, our ball studs bend instead of snapping. In this way, our parts protect steering control and keep your cars safe on the highway or track.
In addition, we pride ourselves on offering complete, tailormade factory choices. From changing sizes and handling small custom orders to applying special skin coatings, we act as the dedicated B2B partner for you. We can change complex blueprint needs into high-performance real parts for global brands and aftermarket suppliers.
Looking for engineered ball joint resilience?
Contact Great Auto Parts today to request a technical consultation or a sample quotation for your heavy-duty custom fleet or specialized performance projects.
